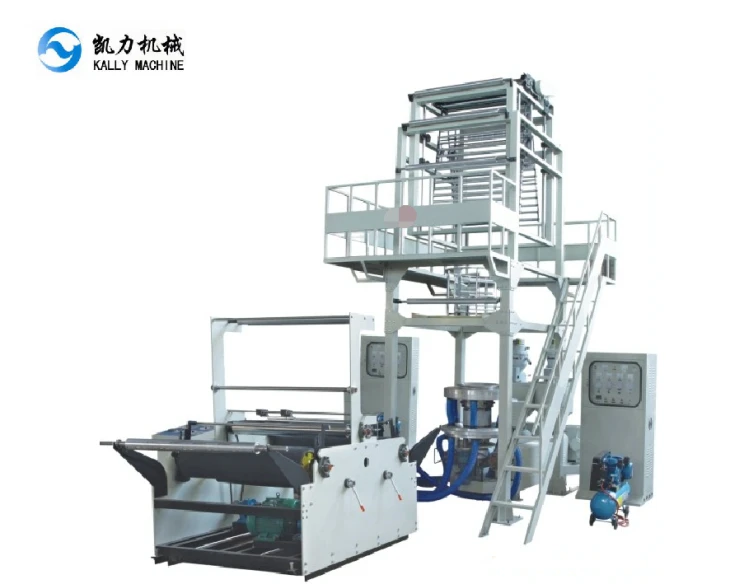

ABA Film Blowing Machine
Performance and features:
The machine plasticizes two identical or different materials into the co-extruded composite head through two extruders to produce a composite film of co-extrusion number, thereby greatly improving the physical properties of the film and increasing its strength. The film has good barrier properties and airtightness.
The machine adopts advanced continuous rotating head, the product is flat and uniform, ensuring the quality requirements of the packaging machine, printing machine and other subsequent process equipment, suitable for producing composite pearl film, composite liquid packaging film, insulating film, multi-function Agricultural film, etc. Its application range is gradually expanding, which is the direction of plastic product development.
Model | 2SJ-M ABA50 | 2SJ-M ABA55 | 2SJ-M ABA60 |
screw size | ф50*2 | ф55*2 | ф60*2 |
L/D | 28:1 | 28:1 | 28:1 |
Max. diameter of film(mm) | 800 | 1000 | 1200 |
Thickness of Single-layer film(mm) | 0.015-0.10 | 0.015-0.10 | 0.015-0.10 |
Max. Output(kg/h) | 40 | 65 | 80 |
Power of main motor(kw) | 11*2 | 15*2 | 18.5*2 |
Heating Power(kw) | 26 | 30 | 42 |
Outline diameter(L*W*H)(mm) | 4200*2200*4000 | 4600*2400*4600 | 5000*2800*5000 |
Weight(T) | 4 | 5 | 6 |
