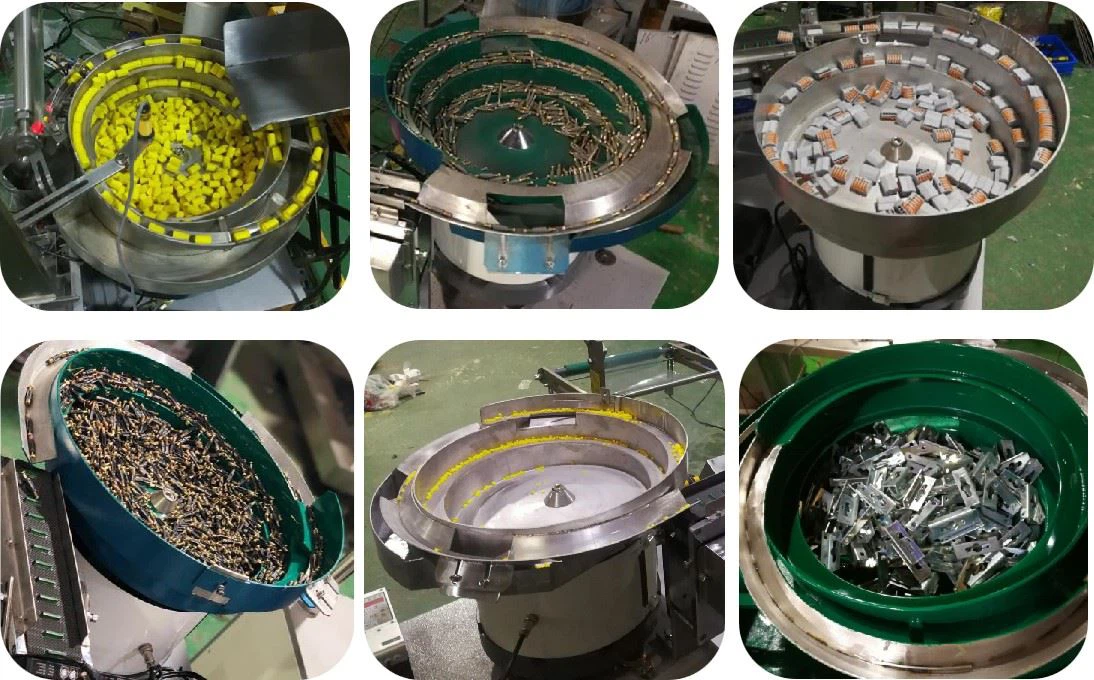

The main feeding method of the hardware counting packaging machine is the vibrating plate, which replaces the traditional manual operation, greatly saving time and human resources, improving work efficiency, and avoiding the danger of high-risk mechanical equipment when operated by people (using the vibrating plate It doesn’t need to be placed artificially for feeding)
The vibrating plate has a wide range of uses: it is used in various automatic assembly equipment, electronic parts processing equipment, electronic components and small hardware parts automatic feeding vibrating plate series and the automatic feeding bin, linear feeder, electronic control, Vibrating platform, vertical vibrator. It is also used in connectors, plastics, stationery, motors and other industries to realize automatic sorting, counting, packaging, inspection, marking, etc. of workpieces. Different models are designed and produced to meet the feeding requirements of different workpieces. For specialization, standardized production has further improved the stability and consistency of products, reduced costs, and provided a reliable guarantee for high-quality products.
Chute: 1. Convey the workpiece to a long distance to facilitate the connection and installation of the vibration plate and the host
2. Store the finished oriented workpiece
3. It can stop when the material is full, feed the working time of the vibrating plate, increase the life, easy to process and low cost,
The linear feeder is composed of a linear track and a vibrating device. It is mainly used in conjunction with a vibrating plate. Its main functions are:
1. The workpiece is conveyed smoothly and neatly
2. Transport the workpiece to a longer distance
3. Convenient to connect and install with mechanical equipment
4. Store the oriented workpiece
5. The machine stops when the machine is full of materials, which can avoid the frontier work of the vibration plate, extend the service life of the vibration plate and reduce noise.
The adjustment steps and main points of the vibrating plate have the following 7 points:
1. Make sure that the vibration body is firmly locked on the disk surface.
2. Turn the controller knob to the middle position
3. Turn on the power to check whether the vibration transmission speed meets the requirements.
4. If it does not meet the requirements, loosen any one of the fixing screws of the locking shrapnel without disconnecting the power supply, and check the vibration speed change.
5. If the vibration speed of the loosened shrapnel fixing screw becomes faster, the shrapnel is too thick, moderately reduce the number of shrapnel or the thickness of the shrapnel before proceeding to step 4, and debug again
6.If the vibration speed of the loosened shrapnel fixing screw becomes slower, the shrapnel is too thin, moderately reduce the number of shrapnel or the thickness of the shrapnel before proceeding to step 4, and debug again.
7. If the vibration speed does not change much after the adjustment in step 4, it means that the adjustment of the spring leaf has been completed.
