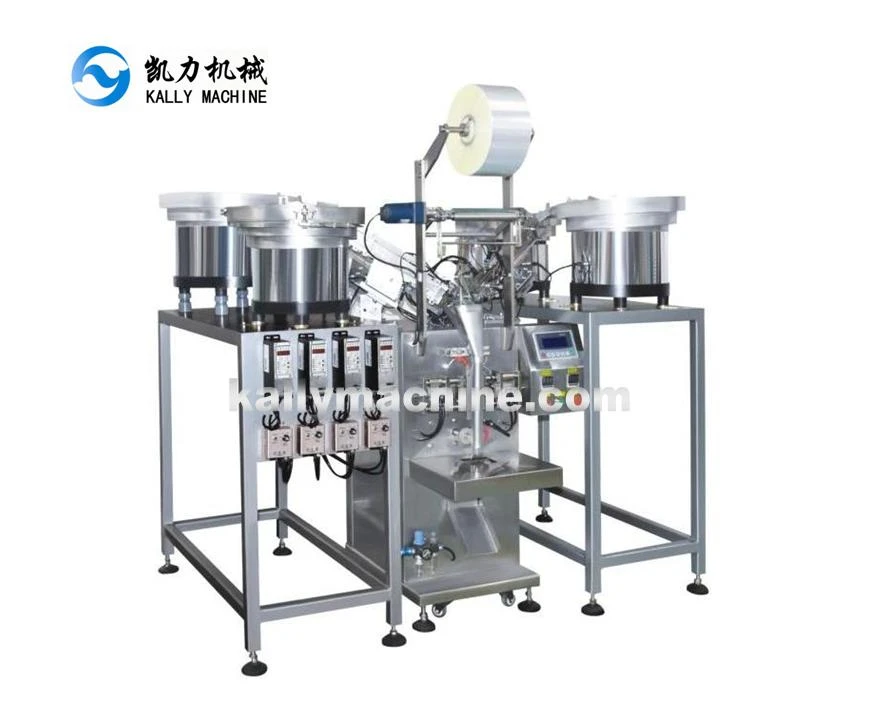

Automatic counting screw packing machine is widely used for packing of screws, wall plugs, zippers/buttons, keys and other accessories.
1. Basic parameters of automatic counting screw packaging machine
Function: bag making, coding, counting, filling, sealing, packaging, labeling, conveying, etc.
Model: JD2403
Power: 2.3
Weight: 1300
Packaging materials: various composite films
Packaging film width: 420
Maximum bag size: 200*300
Packing speed: 30-50 (bags/minute)
Dimensions: 8000*1600*1700
Packing type: Support bag, box and box
2. Features of automatic counting screw packing machine
1. Use Mitsubishi PLC touch screen control system, support Chinese and English, simple and practical operation.
2. The first in the country to achieve dual-use. More effective space and cost savings
3. The self-produced vibrating disk is more wear-resistant, will not cause any material surface wear, and the noise generated is also minimal. The weight of the whole set of vibrating discs varies from 60 to 200 kg. The heavier the vibrating disc chassis, the more stable and smooth the material discharge, and the greater the overall load capacity.
Counting method adopts precise counting control device to ensure the accuracy of counting. Choose the best counting system according to customer's specific materials.
4. Each set of vibrating plate is equipped with a full material shutdown, shortage alarm or shutdown device to ensure that each bag is accurate. The device has self-diagnosis function,
When a fault occurs, it can automatically alarm or stop (alarm or stop user is optional), equipped with multiple emergency stop buttons for easy operation.
5. The equipment can realize automatic arrangement, automatic counting, filling, sealing, packaging, conveying of materials. The number of product packaging can be adjusted arbitrarily, the number of bags can be controlled by itself, the number of packaging can be automatically displayed, and the workload of the machine can be easily counted.
6. The equipment has a reliable safety protection function (all dangerous parts are equipped with safety protection devices.
7. Highly compatible, can meet the packaging requirements of more than 90% of parts of different shapes on the market.
8. The first in the country to install two sets of polyethylene rails in the chain bucket, the chain bucket is more stable, fast, safe and low noise during the progress. The stainless steel body is neat and clean in appearance, the first in the country to adopt a reduced height conveying system, which completely solves the traditional online chain bucket conveying height.
9. The machine has automatic detection of no material and lack of material. The equipment will automatically stop and alarm when there is no material or no material. Each feeder in the equipment can be turned on or off at will to facilitate production needs.
10. High working efficiency, up to 50 packs/min, saving more than 90% of labor, the maximum feeding speed of a single station can reach 500 pieces/min. (The specific packaging speed depends on factors such as material shape and technology)
11. The sorter can be added according to the actual needs of customers, and the separate PLC control can further ensure the accuracy of the quantity. The fastest detection speed can reach more than 100 packages per minute.
11. Vibrating disk feeder, vibration disk sound box, bag punching device, bag labeling machine, ordinary coding machine, intelligent coding machine, finished product conveyor, weight sorting machine, unpacking can be added according to customer requirements Machine, packing machine and other equipment.
12. We can also develop and design various non-standard packaging machines according to customer requirements.
3. Scope of application
Fastener industry (screws, nuts, screws, gaskets, etc.), hardware industry (decorative hardware, construction hardware, various small hardware, etc.),
Electrical industry (electrical accessories, electrical installation parts packages, electrical accessory packages, etc.), plastic rubber industry (cloth wardrobe plastic parts, mahjong machine accessories, etc.)
Electronic industry (various electronic devices, accessories, accessories), vehicle industry (automobiles, bicycles, electric vehicles, stroller accessories), bathroom cabinet industry, furniture industry, solar energy industry and other related industries.
