Split pin is a mechanical part. In order to avoid damaging the hole wall, grease can be added to the pin hole. The production of this part requires the use of high-quality steel and a rigid material with good elasticity.

Cotter pins have many specifications, and the ones that can be automatically arranged and counted here are usually recommended for smaller cotter pins. The arrangement of cotter pins with small specifications and the counting and blanking show efficiency.

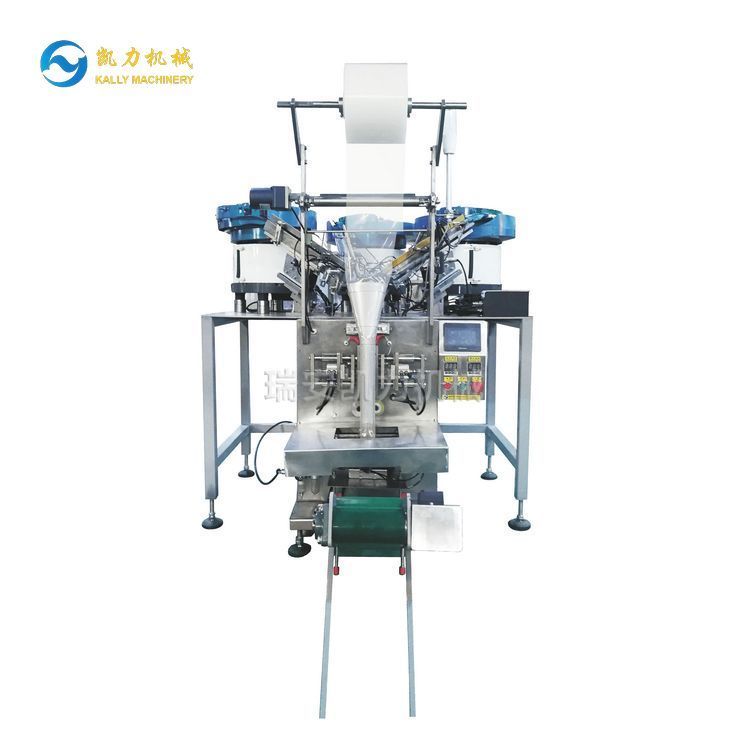

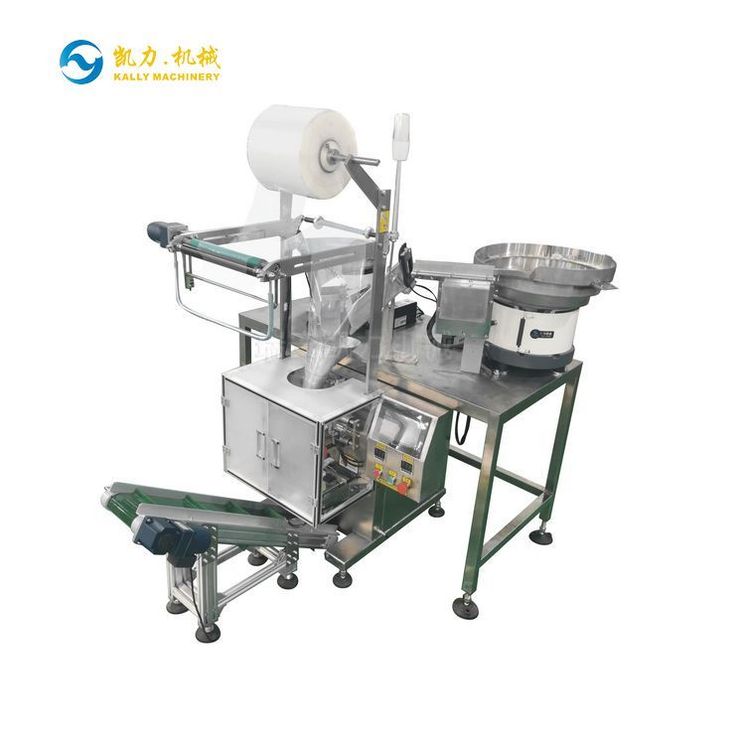

Split pins are used to prevent loosening of threaded connections. After the nut is tightened, insert the cotter pin into the nut groove and the bolt tail hole, and open the tail of the cotter pin to prevent the nut and the bolt from rotating relative to each other. Split pin is a kind of metal hardware, commonly known as spring pin. Therefore, cotter pins are usually packaged with fasteners such as screws and nuts. Ruian Kaili Machinery has customized the same case of related cotter pin packaging for the auto parts industry. The multi-tray counting packaging machine is formed as follows:

Application: Widely used in the automatic packaging of auxiliary installation screws in the electrical, electrical, lighting and hardware building materials manufacturing industries.

Technical features: Vibration plate tailored for screw samples, linear vibration arrangement device and precision technical control device to ensure that each bag is correct. When packaging materials containing icons, the machine’s advanced step control and color coders are used together, Advanced PLC or with single-chip control system, self-shutdown, self-alarm, self-diagnosis, safe and simple to use, automatic display of packaging quantity, convenient statistics of the workload of the machine.

1. Technical parameters:

Functions: bag making, coding, counting, filling, sealing, packaging, conveying, etc.

Packing size: customized on demand

Packing speed: 1-180 (bags/minute)

Bag size: length: 40-200mm width: 20-100mm

Total power: 2.2KW/220V

Film thickness: 0.02-0.15mm

Measuring range: 1-50 pieces counting and packaging of a single specification screw

Air consumption: 20L/min 0.75Ma

Dimensions: 1500*1000*1680mm

Whole machine weight: 450KG

Packing bag sealing form: three-side seal or back seal

Packaging materials: OPP, polyethylene, composite film and other heat-sealable packaging films

Packing type: bagged

Degree of automation: fully automatic

Custom processing: Yes

Business model: manufacturer

2. Equipment characteristics

1. The touch screen control system supports Chinese and English, and the operation is simple and practical.

2. The vibrating tray runs smoothly, has low noise, and does not damage the raw materials. The precise counting control device is used to ensure the accuracy of counting and eliminate negative errors. Each feeder in the equipment can be turned on or off at will to facilitate production needs.

3. Each set of material trays is equipped with full material full shutdown, lack of material alarm or shutdown device to ensure that each bag is correct. The equipment has a self-diagnostic function, which can automatically alarm or shut down when a fault occurs (the user can choose to alarm or shut down), and it is equipped with multiple emergency stop buttons for easy operation.

4. The equipment can realize automatic arrangement, automatic counting, filling, sealing, packaging and conveying of materials. The number of product packaging can be adjusted at will, the number of bags can be controlled by oneself, and the number of packaging can be automatically displayed, which can conveniently count the workload of the machine.

5. The equipment has reliable safety protection functions (safety protection devices are installed at all dangerous parts).

6. It is highly compatible and can meet the packaging requirements of more than 90% of parts with different shapes on the market.

7. By adding a conveyor bucket, it can support automatic packaging of a variety of accessories, and the chain is more stable, faster, safer and lower in noise during the forward process.

8. Vibration plate, feeding machine, bag punching device, coding machine, finished product conveyor and other equipment can be added according to customer's requirements.

9. Various non-standard machinery can also be developed and designed according to customer requirements.

Youtube link:

Hot Tags: split pin counting packing machine, China, manufacturers, suppliers, factory, price

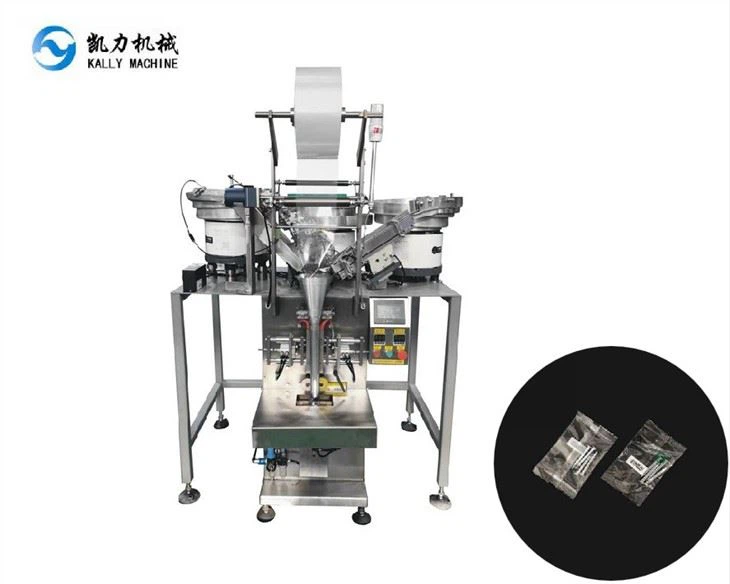

Split Pin Counting Packing Machine
