Paper Straw Machine
More and more people choose paper straw, please check following details of the paper straws machine:
Details of machine :

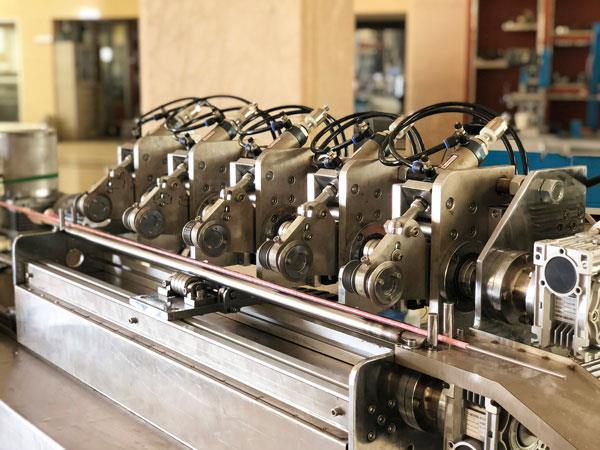

The machine equip with paper feeding, glue coating, winding, cutting, collecting together. And equipped with CNC multi-tool cutting system, cut the finished paper straw online, suit for produce different size of paper straws, 5mm, 6mm, 8mm, 10mm etc, meet different requirement from different industries.
1. PLC control, touch screen HMI, main motor is equipped with variable frequency speed regulation, easy for parameters setting & operating.
2. Servo motor for CNC multi-tool cutting system, servo synchronous tracking cutting system, it makes higher precision and efficiency.
3. Stainless steel material for the machine frame and main spare parts, make sure the hygiene and enviromental protection.
Main parameter:
Paper Layer | 3 layers |
Inner Diameter | 4.5-12mm |
Wall Thickness | 0.3-1mm |
Stable Speed | 30-40 meters/min |
Cutting System | Multi-blades Cutting (5 pcs online) |
cutting system | Servo motor synchronism tracking cut |
Gluing Way | Single & Double sides |
Machine & Parts | Stainless Steel or Painting (Optional) |
Auto Straw Collector | Optional |
Operator | 1-2 person |
Speed Control | By Inverter |
Power Supply | 380V / 3Phase / 50Hz |
Paper Reel Stand | 3 Layers |
Glue Unit | 3 Layers |
Belt | 5 Pieces |
Mandrel Shaft | 2 Pieces |
Measurement | 3500*1500*1200mm |
Weight | 1300kgs |
Working Space | About 7000*5000mm |
Our service:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Running video
https://www.facebook.com/joy.wu.355/videos/465666330848283/
