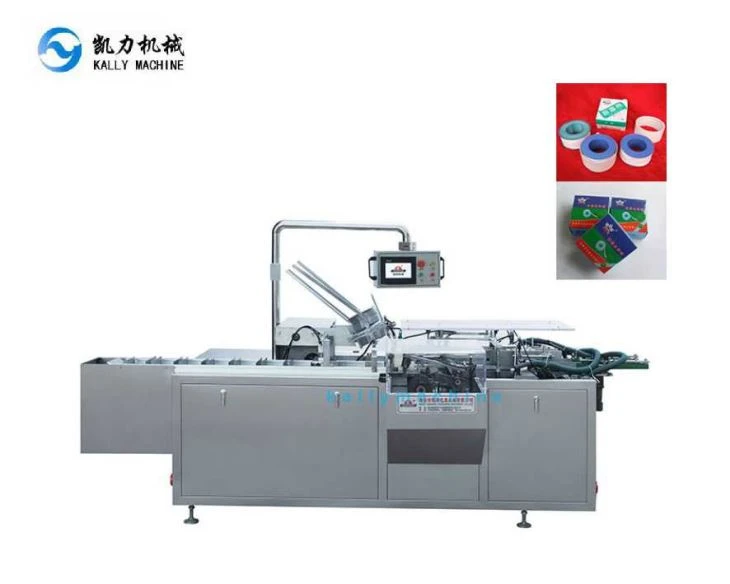

Hardware Cartoning Machine

This machine is suitable for pharmaceutical aluminum-plastic plate, round bottle, heterosexual bottle, food, school supplies, health care products, toys, cosmetics, auto parts, toothpaste, paper towels, office supplies, hardware, household paper, poker, etc. Packing and packaging, can automatically complete the manual folding, carton opening, item loading, printing batch number, sealing box and so on.

The machine adopts PLC to control the photoelectric monitoring of various parts of the action, and automatically rejects the unqualified items during the operation. If there is an abnormality, it can automatically stop and display the cause, so as to eliminate the fault in time, the machine can be used alone or with the blister packaging machine and Its hot melt device or other equipment is used in conjunction to form a complete production line

technical parameter

Power: Ac380v three-phase four-wire 50HZ

Total power: 1.5KW

Production capacity: Host running speed 30-100 boxes / min

Paper folding machine running speed 30-100 boxes / min

Air consumption: 20m3/h (pressure 0.5-0.7mpa)

Packing material: Carton quality; 250-450g/m2 (see carton size)

Specifications: Maximum size (LxWxH) 250x170x90mm

Minimum size: (LxWxH) 50x20x15mm

Instruction manual: Paper quality 55-65g/m2

Specifications: Maximum size (LxW) 260x190mm

Minimum size: (LxW) 100x100mm

Dimensions: 3300x1350x1650mm

Weight: about 1.2 tons

Main characteristics

1. The product enters the box and stops automatically. The LED touch screen automatically displays the fault and stops the alarm, showing the operation and maintenance mode of the machine.

2, no paper box, no manual, no product automatic shutdown.

3. It is convenient to replace the specifications of different products.

4. The main drive has an overload protection device.

5, LED display automatically shows the boxing speed and finished product count

6, no product or manual, automatic scrapping
