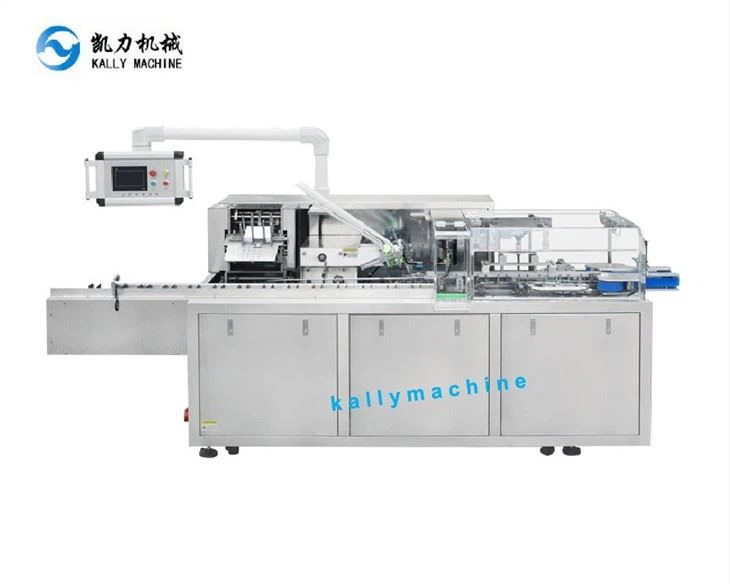

Facial Cleanser Box Packaging Machine

Dimensions: 3500x1450x1650 (mm)

Production capacity: 15-100 (bags/min)

Product function: automatic box opening, material pushing, carton packing, automatic sealing

Applicable industries: daily chemical industry, entertainment industry, food industry

Degree of automation: fully automatic

Power supply: 　　Ac380v three-phase four-wire 50HZ

Total power: 　　1.5KW

Production capacity: 　　Host running speed 15-70 boxes/min

Air consumption: 　　20m3/h (pressure 0.5-0.7mpa)

Packaging materials: 　　Carton quality; 250-300g/m2 (depending on the size of the carton)

Specification:　　Size (LxWxH): 250x170x60m

Small size (LxWxH): 50x20x15mm

Instruction: 　　The quality of paper: 　　55-65g/m2

Specification: 　　Size (LxW): 260x190mm

Small size (LxW): 100x100mm

Dimensions: 3300x1350x1650mm

Weight: about 1200KG

1. It adopts the packaging form of automatic feeding, box opening, boxing, box sealing, waste rejection, etc., compact and reasonable structure, simple operation and adjustment;

　　2. Using servo/stepping motor and touch screen, PLC programmable control system, the man-machine interface display operation is clearer and simpler, the degree of automation is high, and it is more humane;

　　3. The photoelectric eye automatic detection and tracking system is adopted, and the empty package can not be placed in the box, saving packaging materials;

　　4. Large packaging range, convenient adjustment, quick conversion between various specifications and sizes;

　　 5. Changing specifications does not require changing molds, only adjustments can be achieved;

　　6. It adopts automatic shutdown and main drive motor overload protection device if the item is not in place in the box, which is safer and more reliable;

　　7. According to customer requirements, a flip-up safety protective cover can be used, which is easy to operate and beautiful in appearance;

　　 8. It can realize linkage production with aluminum-plastic packaging machines, pillow packaging machines, three-dimensional packaging machines, bottling lines, filling machines, labeling machines, inkjet printers, online weighing machines, and other production lines;

　　9. Various automatic feeders and boxing systems can be designed according to the requirements of the packaging;

　　10. The hot melt glue machine can be equipped with hot melt glue spray sealing box and mechanical brush glue sealing box according to customer requirements.
