Rubber Ring Packing Machine

Rubber Ring Packing Machine

Rubber O Ring Pouch Packaging Machine 1)application: It can arrange the rubber ring fast by the convey line Different sizes of rubber ring, you can use this machine. Mainly counting and packaging for variety of small rubber ring With a simple setup, the rubber ring can be quickly and......
Chat Now

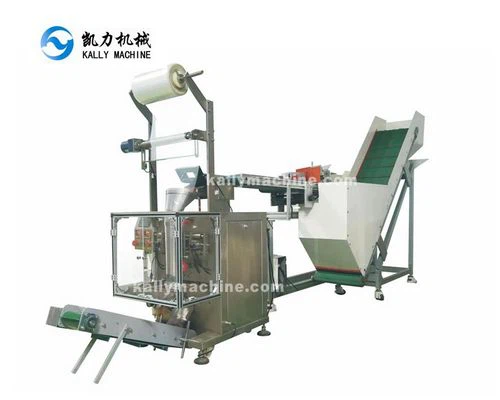

Rubber O Ring Pouch Packaging Machine

1. Introduction

1)application:

  • It can arrange the rubber ring  fast by the convey line

  • Different sizes of rubber ring,  you can use this machine.

  • Mainly counting and packaging for  variety of small rubber ring

  • With a simple setup, the rubber  ring can be quickly and automatically counted and packaged.

2)Customize Description
 Dear  friends:

  • All our online offer only for reference. As all the technical  requirements are different. Kindly contact us for offer with the size, station,  number of material.

  • our company mainly for non-standard packaging equipment, what you  see are some samples and packaging photos for reference.

  • We try to meet production requirement according to different  packaging needs.

  • All the machines warranty for one year, some stock! Factory direct  sales, please be assured to buy.



 3)Main Technical Parameter

  • Packing Speed:1-50Bags/min (Depending on the amount of packaging)

  • Measure Range: One single specification 1-100 PCS (Adjustable)

  • Bag Size Making:L40-180mm W20-140mm

  • Total Power:3.0KW/220V

  • Film Thickness:0.02-0.15mm

  • Overall Dimensions:850*3500*1680mm

  • Bag sealing:3-side sealing、Back sealing

  • Packaging materials:OPP、polyethylene film(PE)、Complex Film etc.

  • Processing customized:Yes

  • Gross Weight:600KG

2、Technical Features

1)Technical Features

  • The device  can achieve automatic arrangement of materials, automatic counting, filling,  sealing, packing, transport. The packaging number of product can be adjusted,  the number of bags can be self-controlled, automatic display packaging  quantity, may facilitate the workload statistics of the machine.

  • The device  has reliable security protection (dangerous parts are fitted with safety  devices).

  • We can  increase the according to customer requirements, feeding machine, bag punching  device, coding, product conveyor and other equipment.

  • It can also  be developed and designed all kind of non-standard machines according to the  requirements of customers.

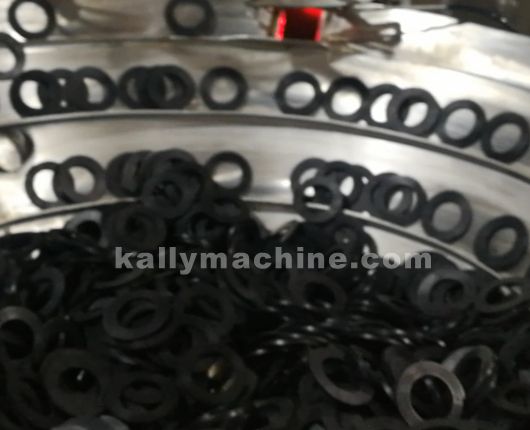

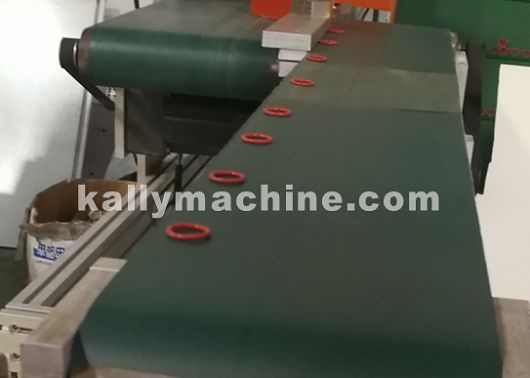

2)machine detailed show

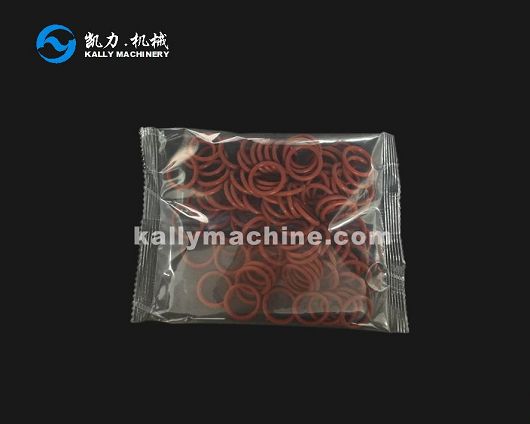

3)packaging sample





3)Video reference

3、Application field:
  • A variety of  fixed shape, not easy to deformation of the ring

  • A variety of  fixed shape, ring or ring-shaped plastic parts

4. Our service

 Installation  Service
 Installation  Services are available with all new machine purchases. We will provide the  technical know-how for your operation smooth transition and support for  installing, debugging, operation of the machine, it will indicate you how to  use this machine well.
 After  Sales Service
 We offer  the Preventative Maintenance and After Sales Service. For we strongly feels  about the importance of supporting our customers and the product solutions we  provide.Consequently we offer comprehensive maintenance options to prevent  equipment issues before they become problems. Also we offer one year guarantee  period.
 In one  words,your satisfaction is our pursuit forever!
