Weight Packing Machine

Weight Packing Machine

Weighing packing machine KL-280W2 1)application: Granula auto weighing packing for diameter min. 0.3mm, max. 40mm. weighing packing for granula within 5kg. This machine is the weighing and filling by counting, mainly for high-precision weighing packing. A full set of high-precision weighing plus......
Chat Now

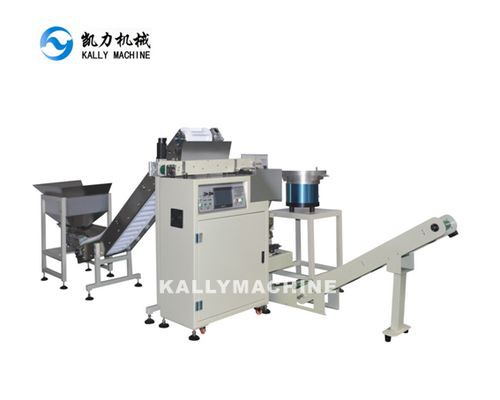

Weighing packing machine
 KL-280W2

1. Introduction

1)application:

  • Granula auto weighing packing for diameter min. 0.3mm, max. 40mm.

  • weighing packing for granula within 5kg.

  • This machine is the weighing and filling by counting, mainly for  high-precision weighing packing.

  • A full set of high-precision weighing plus make up the package, low weighing  error

  • Warm welcomed for the manufacturer of small hardware, plastic  fittings, fastener etc.

2)Customize Description
 Dear friends:

  • All our online offer only for reference. As all the technical  requirements are different. Kindly contact us for offer with the size, station,  number of material.

  • our company mainly for non-standard packaging equipment, what you  see are some samples and packaging photos for reference.

  • We try to meet production requirement according to different  packaging needs.

  • All the machines warranty for one year, some stock! Factory direct  sales, please be assured to buy.

 3)Main Technical Parameter

  • Packing Speed: 1-60 Bags/min (Depending on the amount of packaging)

  • weight categories: 100 g to 3000 g

  • weighing accuracy: according to the individual products grams

  • be weighing size: minimum size of 0.3 mm Φ sphere, maximum size for  Φ 40 mm;

  • feeding way: weighing device

  • Bag Size Making:L40-400mm W40-250mm

  • Total Power:2.0KW/220V(Depending on the quantity)

  • Film Thickness:0.02-0.15mm

  • Outside Dimensions:2000*3000*1500mm(Depending on the quantity)

  • Bag  sealing:2-side sealing

  • Packaging materials:PE Tube Film

  • Processing customized:Yes

  • Gross Weight:600KG



2、Technical Features

1. bags:  it has innovation on the basis of stand-up pouches, while the barrel pattern  across the membrane seal sealing, making three-dimensional packaging stronger,  look more beautiful, to make your the product more attractive.
 ◆ Material: PE, PP. Packaging film  can be customized color printing two kinds of tubular material and transparent;
 ◆ bag principle: a tubular membrane  (membrane barrels) processed into films, such as kangaroos abdomen, upper and  lower seal, made continuous bags;
 ◆ bags Size: Thickness 0.03 ~  0.15mm, pouch width 40 ~ 250mm, bag length 40-400mm.
 ◆ bags larger capacity, especially  for multi-package required number of products;
 2. New  machine cabinet, sophisticated appearance, optional stainless steel cabinet, safe,  more durable;
 3. It use  servo motor to pull film transporting film system, man-machine interface touch  screen operation.
 4. the  control system adopts a high-performance programmable logic controller (PLC),  the whole Chinese / English touch-screen operating system, the whole process of  dynamic display packaging and operating instructions, user-friendly LCD  touch-screen display operation;
 5, the  machine with metering equipments, automatic measuring, feeding, counting,  filling, sealing, date printing, cutting and packaging of the finished product.  It can be added vibration plate according to customer requirements, equipped  with electronic scales, combination scales, optional automatic feeding machine,  the bag punching device, easy to tear mouth, coding, product conveyor and so  on.
 6、weighing control device
 After Packing material pass through the conveyor  belt, the material reach the feeder device, accurately weighed by weighing  sensor system, feeder feeding, according to the packaging materials, fill up by  vibration plate, the data from weighing device weight sensor, fill up the  number which is given by the PLC control system, so as to achieve a high  packaging accuracy.

2)machine detailed show

 A full set of packaging machine program map

 A full set of packaging machinery

 Poor + host

3)packaging sample

 2000  screws weighing package

 3000  pcs granules weighing packaging
 3)Video reference

3、Application field:
  • Fastener industry: all kinds of metal parts, such as screws, nuts,  bolts, washers, core, diamond and so on;

  • Hardware industry: such as decorating hardware, architectural  hardware, various hardware pieces;

  • Electrical and electronic industry: electronic components, such as  capacitors, resistors, transistors, diodes, connectors and other electrical  accessories, parts and other electrical installation;

  • Plastic and rubber industry: Plastic products, such as injection  molding products, buttons, seals, instrumentation and watch parts, terminals,  decorations, ABS pinion;

  • Auto industry: car small parts, bicycles, electric cars, Childs  vehicles accessories;

  • Granular object: a variety of agricultural seeds, nuts and other  food.

  • Bathroom cabinet industry, the furniture industry, the solar  industry and other related industries kits;

4. Our service


Kally  company consists of a young and dynamic team. We work enthusiastically and  conscientiously to provide you with everything from advice on packaging,  design, development, sales and service.   In the development of innovative products, Kally has been at the  forefront of the packaging machine industry. Not only that, Kally also  committed to promoting and advocating advanced packaging concepts, and guide  customers to "liberate the productive forces and eliminate labor".

  • Pre-sales:  we provide professional advice, programming, and design every packaging machine  solutions.

  • On-purchase: Strict sales  management and control system, to provide customers with the best  cost-performance solutions

  • After-sales:  warranty for one year, long-life maintenance, quick response, operating  training.

Installation  Service
 Installation  Services are available with all new machine purchases. We will provide the  technical know-how for your operation smooth transition and support for  installing, debugging, operation of the machine, it will indicate you how to  use this machine well.
 After  Sales Service
 We offer  the Preventative Maintenance and After Sales Service. For we strongly feels  about the importance of supporting our customers and the product solutions we  provide.Consequently we offer comprehensive maintenance options to prevent  equipment issues before they become problems. Also we offer one year guarantee  period.
 In one  words,your satisfaction is our pursuit forever!
